Manual Rinser
A semi-automatic rotary rinser constructed entirely from stainless steel, featuring 4-10 stations. Operates with sterilized water without recovery, and includes a 0.45-micron filter and cartridge. Equipped with a switchboard with low voltage circuits, it is built according to EC standards and mounted on wheels.
A 20-station version is also available.
A 20-station version is also available.
400-700 Bot/h
Manual Rinser
Manual Fillers
Filler made entirely of AISI 304 stainless steel, suitable for filling food liquids such as WINE, OIL, BEER, DISTILLATES. It is equipped with adjustable and fully removable filling heads for a complete and quick sanitization. Special filling heads for bottles with opening up to 60mm and neck height 120mm are available on request.
900-1300 Bot/h
Manual Fillers

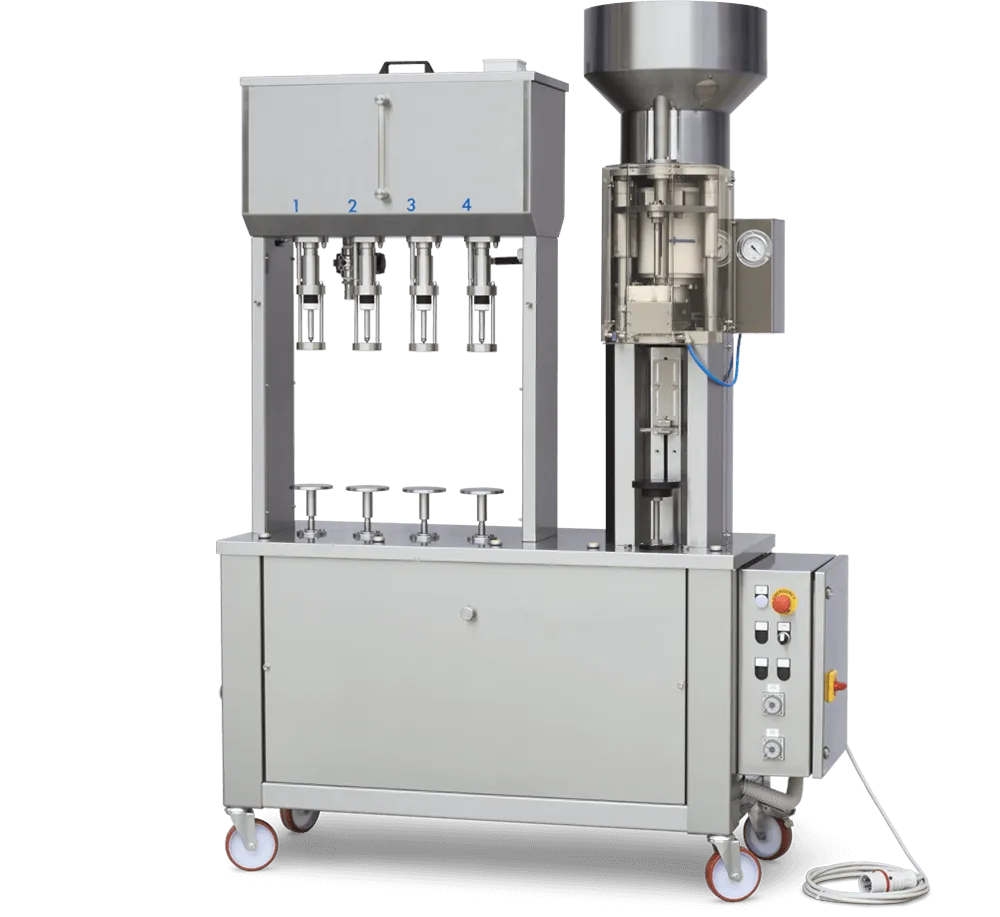

Semi-automatic Linear Fillers
Filling machine with 4 valves for gravity filling, pneumatic bottle lift with descending timer and ready for pump connection. Mechanical capping machine for aluminum screw cap/cork, with push button control, pneumatic bottle lift and equipped with a head with 4 interchangeable rollers. Manual cap distribution
400-500 Bot/h
Semi-automatic Linear Fillers
Semi-automatic Linear Fillers For Big Format 3-6-9L
2-valve filler for gravity filling system, pneumatic bottle lift, and pump connection ready.
Mechanical corker for still wine corks with push-button operation, manual cork distribution directly into the closing head, and pneumatic bottle lift. Hardened and ground steel jaws with bronze sliders, produced through CNC machines for perfect interchangeability.
Mechanical corker for still wine corks with push-button operation, manual cork distribution directly into the closing head, and pneumatic bottle lift. Hardened and ground steel jaws with bronze sliders, produced through CNC machines for perfect interchangeability.
100-300 Bot/h
Semi-automatic Rotary Fillers
6 valves rotary filler for gravity filling, pneumatic lifting of the bottles, automatic movement.
Mechanical corker for still wine corks with push button operation, pneumatic lifting of the bottles and automatic distribution of the corks through a hopper.
Jaws of hardened machined steel and bronze sliders obtained through numeric control machines
Switch board predisposed with outlet for pump, controls and safety guards
400-700 Bot/h; Bottle size from 0,375 to 1,5 l
Semi-automatic Rotary Fillers
Semi-automatic Rinser-Fillers
Semi-automatic rinser, use with sterilized water, 10 place, entirely made in stainless steel AISI 304.
6 valves rotary filler for filling with gravity system, automatic movement, pneumatic bottles lifting.
Mechanical capping machine for aluminum screw cap/cork , automatic corks distribution trough an hopper and pneumatic bottles lifting.
Hardened and rectified steel jaws and bronze trolleys, obtained by numerical control machines and working centre, which guarantee a perfect interchangeability.
6 valves rotary filler for filling with gravity system, automatic movement, pneumatic bottles lifting.
Mechanical capping machine for aluminum screw cap/cork , automatic corks distribution trough an hopper and pneumatic bottles lifting.
Hardened and rectified steel jaws and bronze trolleys, obtained by numerical control machines and working centre, which guarantee a perfect interchangeability.
400-700 Bot/h; Bottle size from 0,375 to 1,5 l
Filling Bag in Box
Automatic filling machine for filling single bags. Prepared for filling wine, oil, food liquids such as creams and sauces with solids, industrial liquids (soaps, lubricating oils).
The machine is completely built in stainless steel, with a wide roller surface for the sliding of the containers. The filling cycle is completely automatic: the machine carries out all the operations of opening, closing, vacuum, saturation with inert gas, filling. Under vacuum, the operator only has to position the bag and check the progress of the various operations.
The machine is completely built in stainless steel, with a wide roller surface for the sliding of the containers. The filling cycle is completely automatic: the machine carries out all the operations of opening, closing, vacuum, saturation with inert gas, filling. Under vacuum, the operator only has to position the bag and check the progress of the various operations.
Bag in Box Fillers
