Isobaric Filling-Tapping up to 350 Bot/h
This semi-automatic machine is designed for isobaric filling and sealing with mushroom cork stoppers and cages for sparkling wines, still wines, and beer. Bottles are loaded and unloaded manually, while the processing stages are automated. The monobloc includes a first turret with four filling taps, a single-head turret for applying mushroom caps, and a single-head turret for closing with a metal cage.
350 bot/h bottle size 0.33 to 1.5L
Isobaric Filling-Tapping up to 800 Bot/h
This semi-automatic machine is designed for isobaric filling and sealing with mushroom cork stoppers and cages for sparkling wines, still wines, and beer. Bottles are loaded and unloaded manually, while the processing stages are automated. The monobloc includes a first turret with four filling taps, a single-head turret for applying mushroom caps, and a single-head turret for closing with a metal cage.
500-800 bot/h bottle size 0.33 to 1.5L

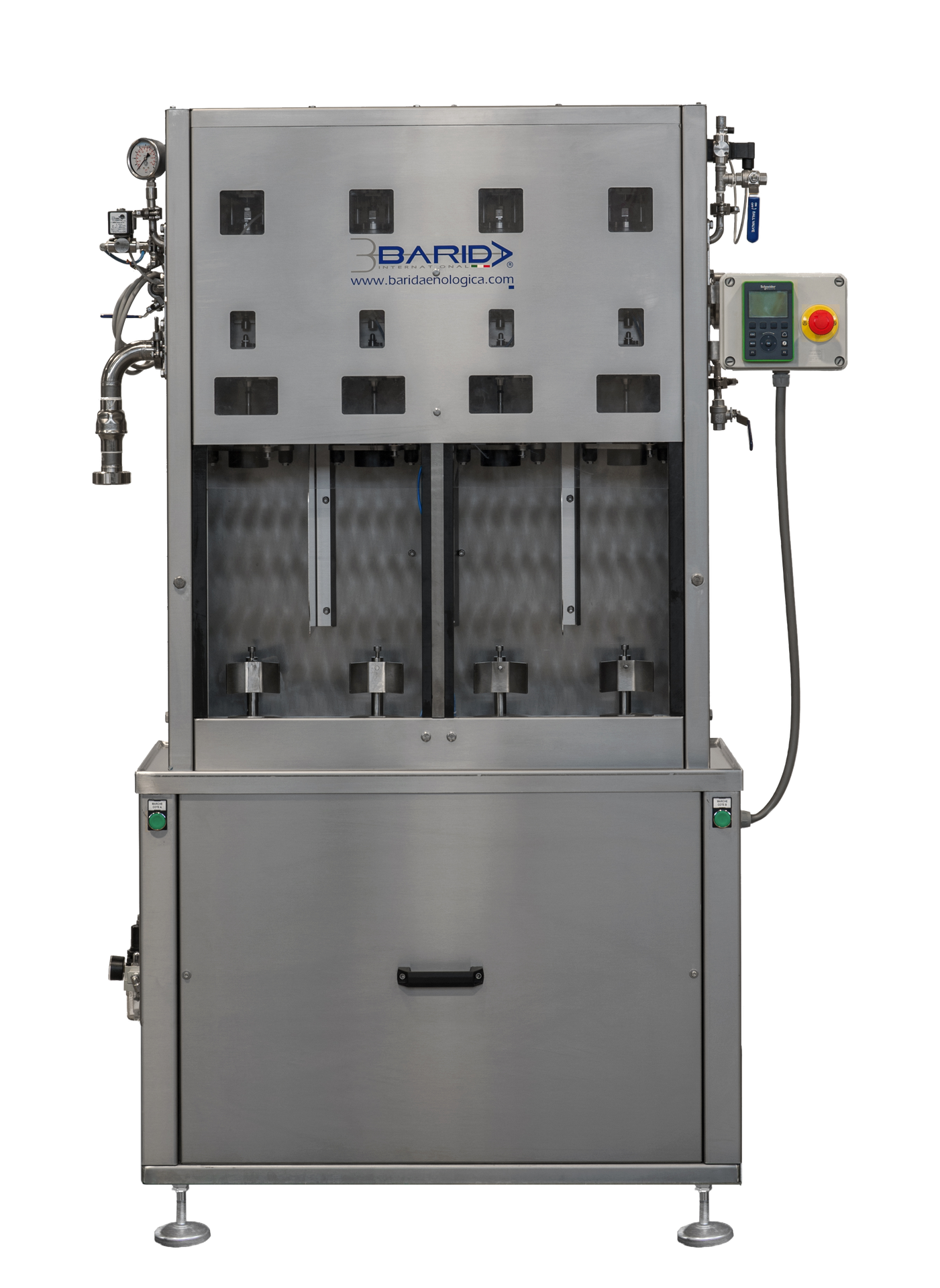

Isobaric Filling-Capping up to 400 Bot/h
Four-valve gravity filler, constructed with stainless steel AISI 304
Pneumatic bottle lifting with drop-down timer. Pneumatic capper for crown caps with push-button operation.
Connector predisposition for the pump
Available in various versions to meet customer needs
400 bot/h bottle size 0.33 to 1.5L
Isobaric Filling-Capping up to 500 Bot/h
6-valve rotary filler is designed for efficient gravity filling, featuring pneumatic lifting for bottles and automatic movement for seamless operation. The crown capper operates with a simple push button, utilizing pneumatic bottle lifting and an automatic cap distribution system powered by a vibrator. The switchboard is equipped with a pump outlet, controls, and safety guards that meet EC standards, ensuring reliable and safe use. For added convenience, the unit is wheeled and offers an optional low depression filling system kit for beer foam aspiration.
500 bot/h bottle size 0.33 to 1.5L
Isobaric Filling-Tapping up to 2000 Bot/h
With its range of isobaric fillers, CIMEC demonstrates extensive expertise in bottling processes. The machines are crafted using cutting-edge technology, ensuring reliability and precision for users. Both carbonated and still products can be processed with isobaric fillers, offering a wide selection of filling valves tailored to the specific characteristics of the product. Due to the constant demand for flexibility from customers, CIMEC has developed a new electro-pneumatic filler. This project focuses on the filling valve, with various phases timed by the operator to create different recipes. This ensures optimal performance and consistent repeatability of values for each valve, even when speeds vary throughout the bottling cycle.
1000-2000 bot/h bottle size 0.33 to 1.5L
Isobaric Filling up to 12 000 Bot/h
Are available in mechanical or electronic Tronic® configuration. The electronic version offers the possibility to customize and memorize the working parameters for each type of product and bottle.
The machine as a whole is much simpler and lighter than the mechanisms and external cams present in the normal version. The opening functions of the tap circuits are electronically controlled by means of pneumatic actuators.

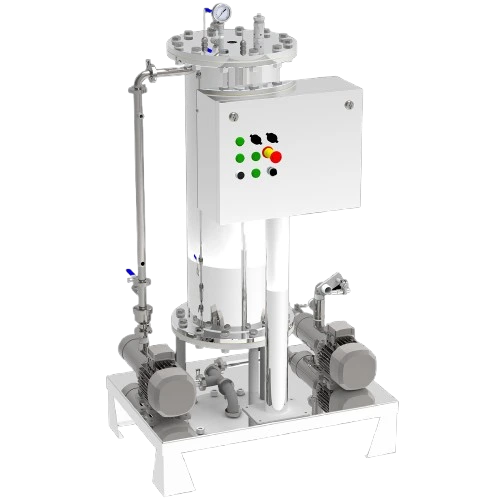

Saturator
Our saturator is an advanced device designed to carbonate water and other liquids, including soft drinks, beer, and alcoholic beverages. It efficiently mixes CO2 with your chosen liquid, ensuring optimal absorption for consistent and homogeneous carbonation. The saturator includes an injection pump for the liquid, a mixing device with a gas inlet circuit, a mixing and temporary storage tank, and a booster pump for delivery. It operates independently with minimal oversight from an operator.
Technical Features: - Tank Capacity: 75 Liters - Maximum Use Pressure: 6 bar - Dissolved CO2: Up to 10g/L - Sanitizing Temperature: Up to 110°C
