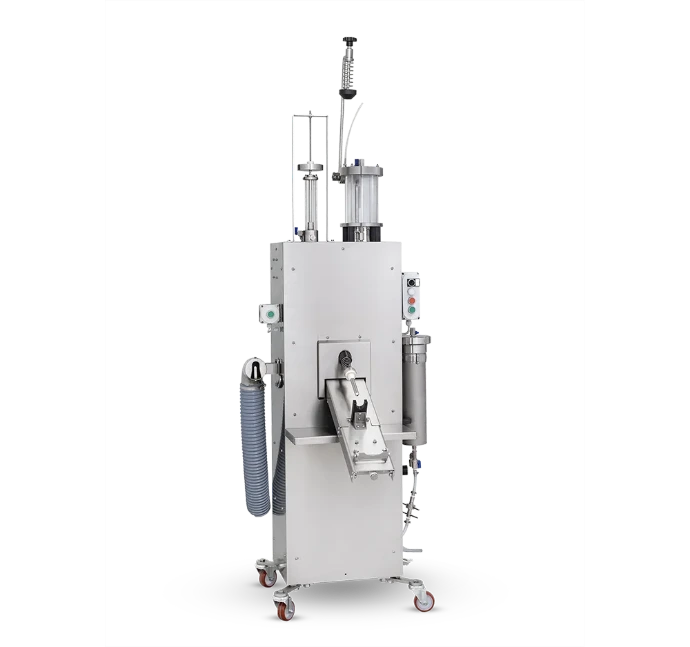

PRIMA1 Semi-automatic doser for classic method
Technical Features:
-Device for the operation of disgorging
-Tank for the liqueur equipped with compressed air inlet (CO2 or Nitrogen) and manometer for
pressure control
-For performing the operation of degorgement, wine removal, liqueur dosage, wine level
-Manual tube degorger on the left side of the machine
1 or 2 valves for performing independently the various operation ensuring the best possible
working quality
-Operating cycle managed by an electronic controller to perform the operation automatically
-Volumetric doser with graduated glass cylinder; needle valve for setting the exit speed of the
liqueur; liqueur feeding by pressurized container.
-Wine container for receving the excess wine and making the final level
-Circuit washing by utility bottle and dedicated washing program
-Excess wine receiving tank and level feed in upper position next to the dispenser
Technical specifications:
– Dimensions: 85 x 85 x 200 cm
– Weight: 120 kg
– Bottles per hour: 100
– Bottles capacity: from 0.35 to 1,5l
- Product type: Classic Method
