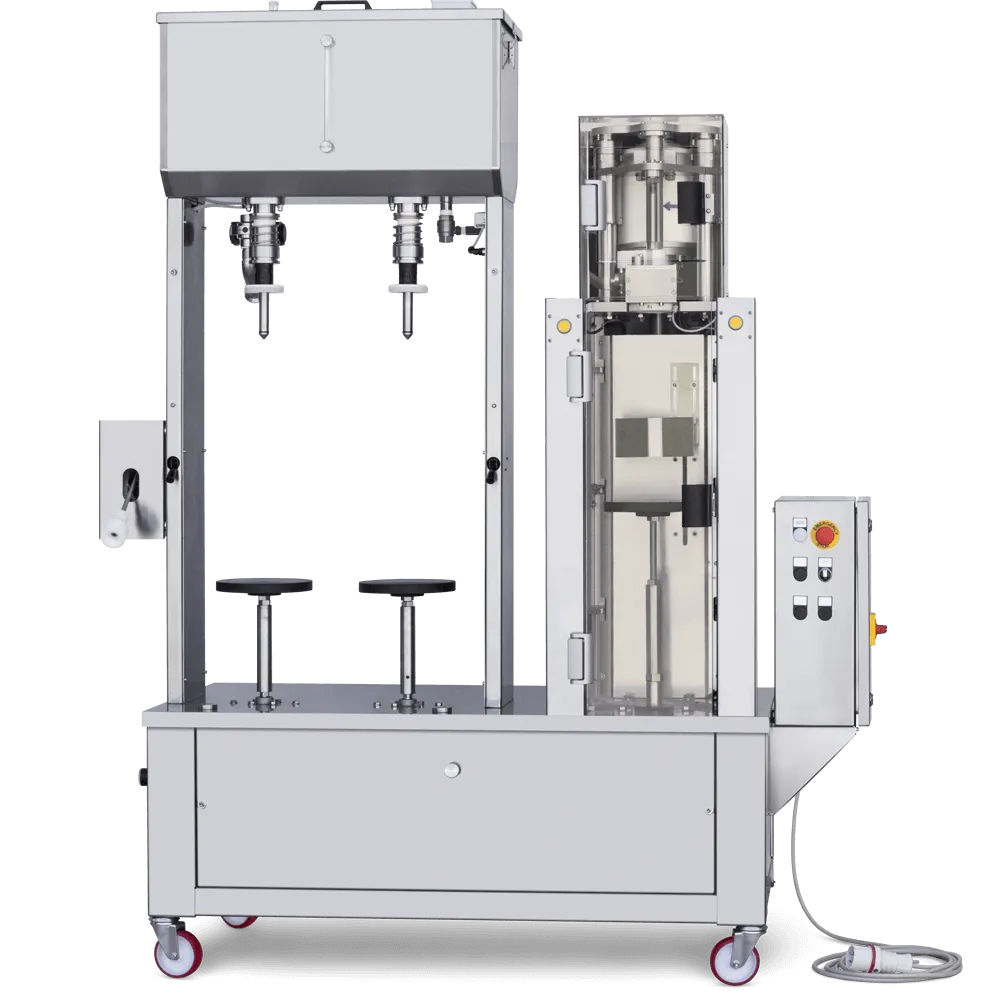

PG 2010 MAGNUM-2 Semi-automatic monoblock for big format
Technical Features:
-2 valves filler for gravity filling system, pneumatic lifting of the bottles and predisposal for pump
connection.
-Mechanical corker for still wine corks with push button operation, manual distribution of the
corks directly into the closing head and pneumatic lifting of the bottles.
-Jaws of hardened and ground steel and bronze sliders, produced through numeric control
machines and machining centres ensuring their perfect interchangeability.
-Wheeled
Technical specifications:
– Dimensions: 1130 x 70 x 220 cm
– Weight: 550 kg
– Bottles per hour: 100
– Bottles capacity: 3-6-9 l
- Caps: Ø 30-36 mm, h 45-50 mm
- Product type: Wine
-2 valves filler for gravity filling system, pneumatic lifting of the bottles and predisposal for pump
connection.
-Mechanical corker for still wine corks with push button operation, manual distribution of the
corks directly into the closing head and pneumatic lifting of the bottles.
-Jaws of hardened and ground steel and bronze sliders, produced through numeric control
machines and machining centres ensuring their perfect interchangeability.
-Wheeled
Technical specifications:
– Dimensions: 1130 x 70 x 220 cm
– Weight: 550 kg
– Bottles per hour: 100
– Bottles capacity: 3-6-9 l
- Caps: Ø 30-36 mm, h 45-50 mm
- Product type: Wine
