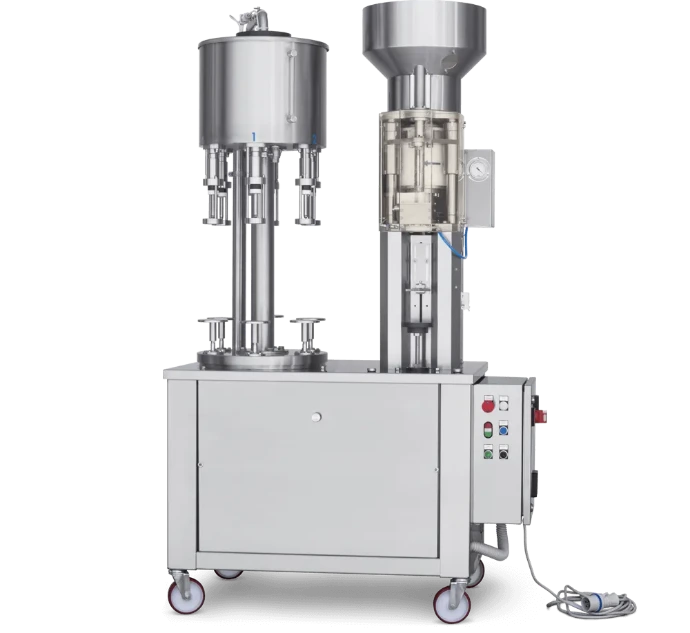

EURO 2012 Semi-automatic rotary monoblock
Technical Features:
-6 valves rotary filler for gravity filling, pneumatic lifting of the bottles, automatic movement.
-Mechanical corker for still wine corks with push button operation, pneumatic lifting of the bottles
and automatic distribution of the corks through a hopper.
-Jaws of hardened machined steel and bronze sliders obtained through numeric control
machines
-Switch board predisposed with outlet for pump, controls and safety guards in compliance with
the EC standards
-Wheeled
Technical specifications:
– Dimensions: 155 x 78 x 220 cm
– Weight: 500 kg
– Bottles per hour: 700
– Bottles capacity: from 0.35 to 1,5l
- Caps: Ø 24-28 mm, h 35-50 mm
- Product type: Wine
