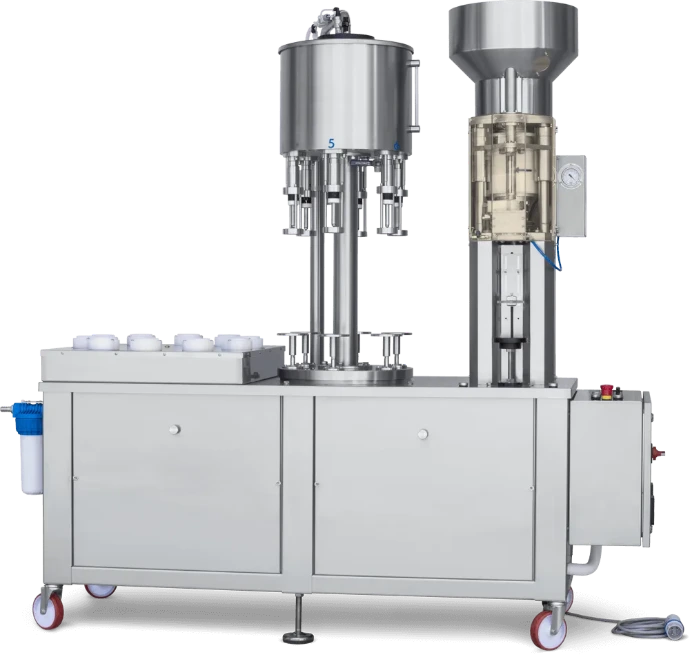

EURO 1061-S Semi-automatic rotary triblock
Technical Features:
-Semi-automatic rinser, use with sterilized water, 10 place, entirely made in stainless steel AISI
304.
-6 valves rotary filler for filling with gravity system, automatic movement, pneumatic bottles
lifting.
-Mechanical corker machine for still wine corks with push button operation, automatic corks
distribution trough an hopper and pneumatic bottles lifting.
-Hardened and rectified steel jaws and bronze trolleys, obtained by numerical control machines
and working centre, which guarantee a perfect interchangeability.
-Switchboard predisposed with outlet for pump, controls and safety guards complying with EC
norms.
Technical specifications:
– Dimensions: 190 x 80 x 205 cm
– Weight: 600 kg
– Bottles per hour: 300/700
– Bottles capacity: from 0.35 to 1,5l
- Caps: Ø 24-28 mm, h 35-50 mm
- Product type: Wine
-Semi-automatic rinser, use with sterilized water, 10 place, entirely made in stainless steel AISI
304.
-6 valves rotary filler for filling with gravity system, automatic movement, pneumatic bottles
lifting.
-Mechanical corker machine for still wine corks with push button operation, automatic corks
distribution trough an hopper and pneumatic bottles lifting.
-Hardened and rectified steel jaws and bronze trolleys, obtained by numerical control machines
and working centre, which guarantee a perfect interchangeability.
-Switchboard predisposed with outlet for pump, controls and safety guards complying with EC
norms.
Technical specifications:
– Dimensions: 190 x 80 x 205 cm
– Weight: 600 kg
– Bottles per hour: 300/700
– Bottles capacity: from 0.35 to 1,5l
- Caps: Ø 24-28 mm, h 35-50 mm
- Product type: Wine
