POKER 700-Machine For Classic Method
Technical Features:

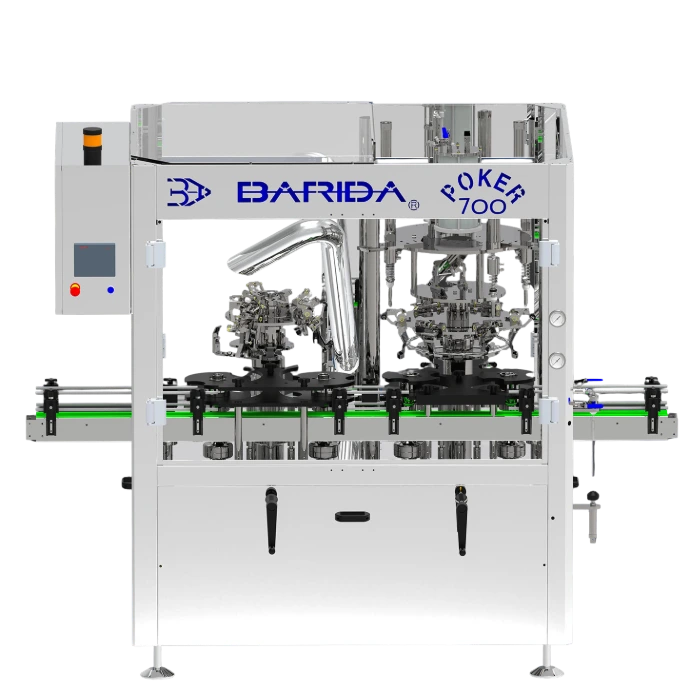

The POKER 700 automatic monoblock consists mainly of two turrets, the first of which is continuous rotation and the second intermittently rotating.
The first turret performs the disgorging operation: equipped with three bottle gripping / closing groups, it overturns the bottle by about 65 ° and then pulls out the crown cap.
Following the extraction of the cork, the bottle, which remains in an inclined position, is closed to limit the spillage of wine.
Before the end of the rotation it is brought back to vertical position.
The second turret, which has sa ivory points, each equipped with a gripper, performs three operations during one rotation: the filling, the dosage of the liqueur and the leveling.
The bottle is again tilted for the dosage of the liqueur.
The leveling operation takes place after the bottle has been brought back to a vertical position.
The first turret equipped with a device for or unloading the caps which are conveyed into a tray inside the base.
-Inlet bottle neck washing device
-Automatic adjustable dosage
-Stainless steel taps
-Simple, reliable and easily sanitized
Technical specifications:
– Dimensions: 2000 x 1800 x 1300 mm
– Weight: 950 kg
– Bottles per hour: 700
– Bottles capacity: from 0.375 to 1,5 l
